Model

Ship Name

Ship Size

Diesel engine

Dredging Capacity

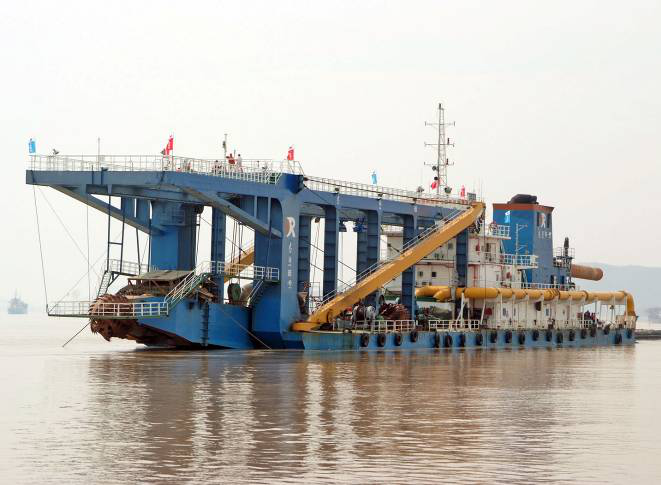

Cutter Suction Dredger of 3500 m3

Darun 56

Full length:121.1m

HullLength:98.8m

Hull Width:5.2m

Depth:5.2m

Design Draught: 3.7m

£¨1£©Main Diesel Engine:

Qty: 1

Manufacture: Sulzer from France

Model: 16ZAV405

Rated Power: 10560KW

£¨2£©Auxiliary Generator Set

Qty: 2

Manufacturer: Weifang

RatedPower:120KW  75KW

Dredging Depth:

Max 27m, Min 6m

Clean Water Flux: 12000m³/h

Max. Discharge Distance: 6300m

Internal Diameter of the discharge pipe:Φ900mm

Discharge Height: 6m

Dredge Pump

Underwater Dredge Pump

Cutter

Steel Pile

Ship Class

Qty: 2

Model: 900WNB51.5 (3 blades, double casing)

Rotating Speed: 295rpm

Shaft Power: 3800KW*2

Underwater Dredge Pump Model:900WNBX35

(3 blades, single casing)

Rotating speed: 278rpm

Shaft Power: 2200KW

Qty: 1

Internal Diameter of Cutter Ring: 2500mm

Motor Power: 2×1000KW

Rotating Speed:  0~30rpm  Constant Torsion; 30~40rpm Constant Power

Shaft Power: 1800KW

Spud Carrier System:

External Diameter: 1600mm

Length: 42m

Weight: 96t

Qty: 2

CCS
